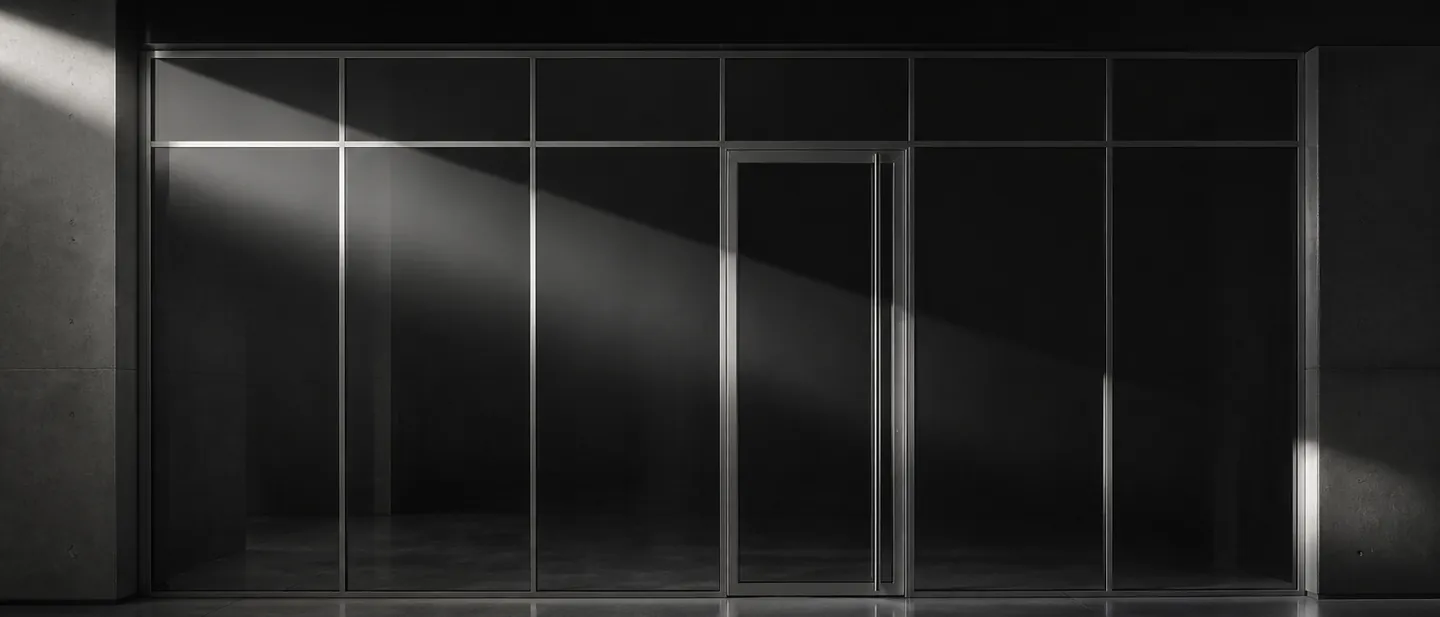

FIRE-RATED
GLAZED
SYSTEMS

Fire-rated glass partitions, screens, transoms and partitions with integrated doors that separate fire compartments without depriving spaces of light and views. Used in lobbies, corridors, atriums, offices and on escape routes of hotels, hospitals, schools and public buildings. DPS designs the system for the specific opening, selects the frame and fire-resistant glass, manufactures at partner production sites, installs and hands over with as-built documentation.

01 · CONSTRUCTION

WHAT THE SYSTEM
IS MADE OF

FRAME: Steel or aluminium profiles with fire-protective inserts in the chambers. Profile depth and type are chosen for the required fire rating and the height of the construction.
FIRE-RESISTANT GLASS: Laminated glass with clear fire-protective interlayers, or toughened fire-resistant glass. It is the glass together with the frame that determines whether the construction is E, EW or EI.
GLAZING BEADS AND RETAINERS: Steel glass retainers and beads hold the infill in place under heat after the seals have burnt out. They allow the glass to be replaced without dismantling the frame.
INTUMESCENT STRIPS: Fitted in the rebates and around the glazing. In a fire they expand and close the gaps between the glass, profile and opening.
JUNCTIONS: Fixing details to slabs, walls and columns with a non-combustible joint fill. They follow tested details; otherwise the fire rating of the construction cannot be confirmed.
DOOR SET: Integrated fire-rated doors in the same profile with a closer, seals and escape route hardware.

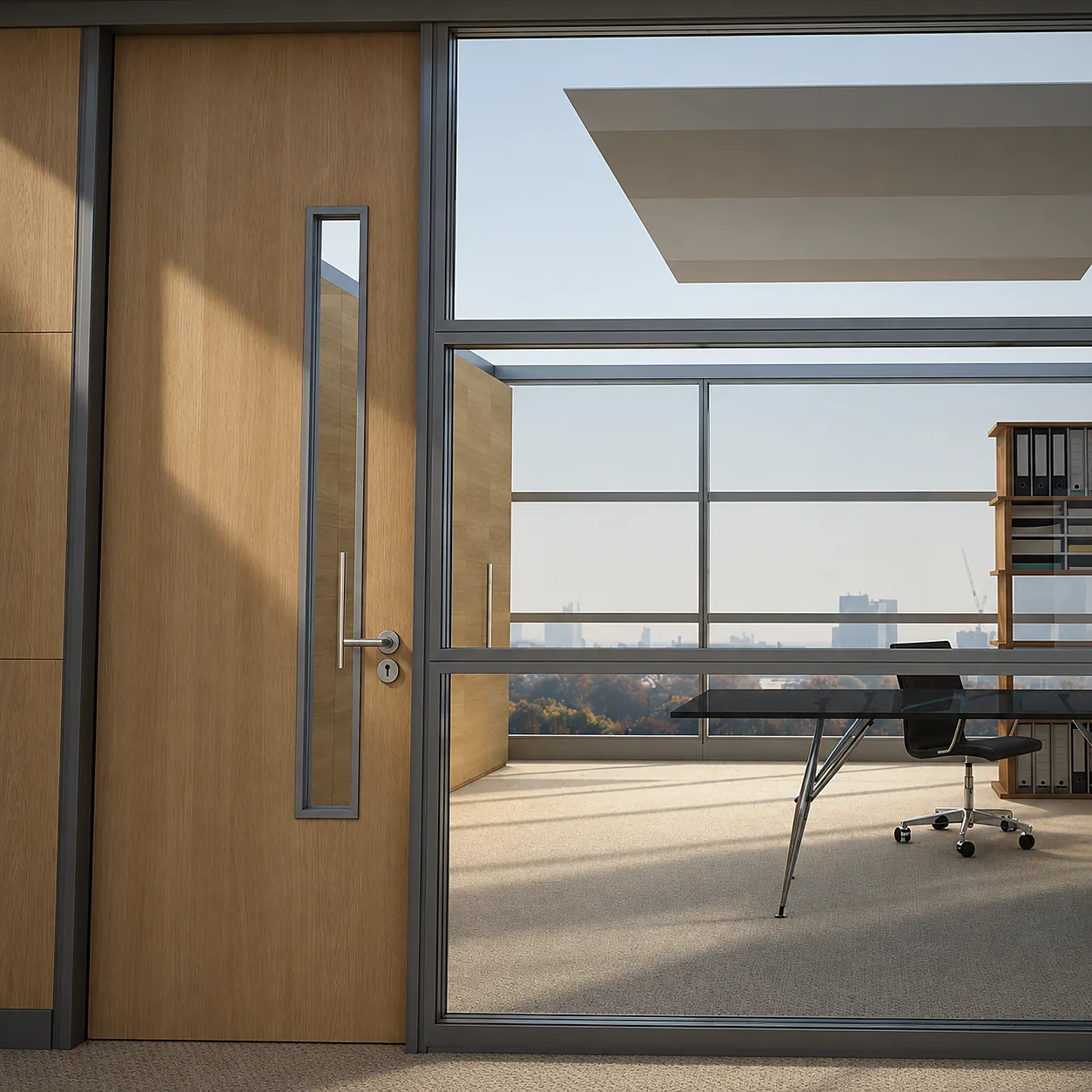

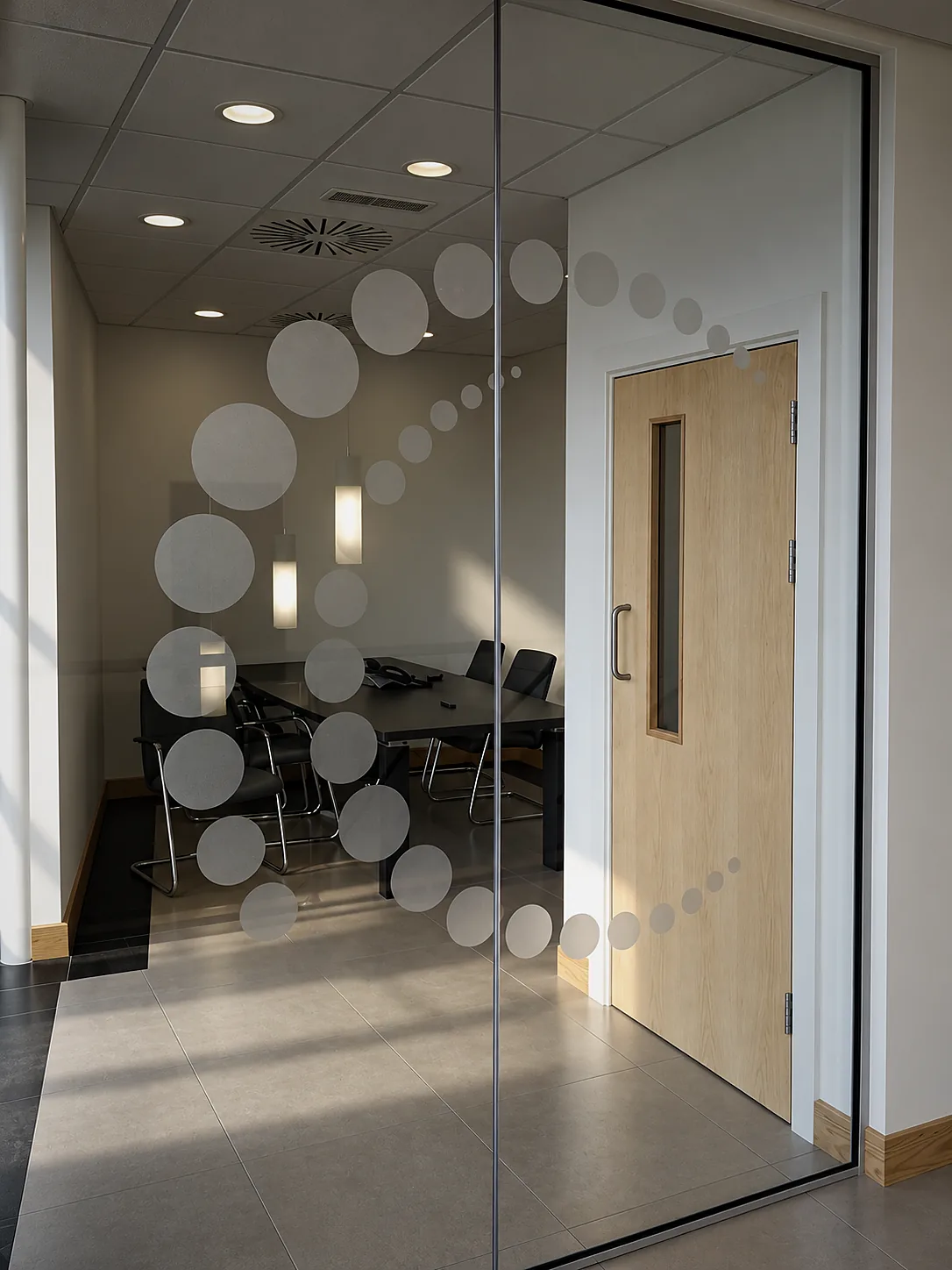

Fire-rated door with vision glazing in a partition

02 · TYPES AND OPERATION

SYSTEM
TYPES

FIXED PARTITION

Fixed glazed partition made of modules across the full width of the opening. The main type for separating corridors, stair lobbies and atriums.

corridors, lobbies, atriums, offices

FIRE-RATED SCREEN

Fixed glazing of an internal opening or wall section, including internal windows in fire barriers. Rating as designed — from E 30 to EI 90.

internal windows, nurse stations, control rooms

PARTITION WITH SINGLE-LEAF DOOR

Fixed modules and an integrated glazed door in a single profile. The door comes with a closer and, where required, panic hardware.

office suite entrances, corridors, floor lobbies

PARTITION WITH DOUBLE-LEAF DOOR

Double-leaf door with a closing sequence selector for wide passages and escape routes. Leaves may be of different widths.

lift lobbies, entrance halls, hospital corridors

TRANSOMS AND SIDE MODULES

Glazed elements above and beside the door that bring the door set up to the size of the opening without losing the fire rating.

entrances, openings over 2.5 m, refurbishment

OVERSIZED FULL-HEIGHT

Floor-to-slab partitions with wider mullion spacing and large-format glass. Height and module size are limited by the tested field of application of the system.

atriums, lobbies, retail galleries

GLASS SUPPLY AND REPLACEMENT

Fire-resistant glass and glass units for existing constructions, including replacement of damaged infill matched by marking and data sheet.

facility operation, repairs, supply to contractors

Diagrams are schematic: plan view; for constructions with a transom — front elevation.

03 · FINISHES AND MATERIALS

FRAME
AND FINISHES

STEEL FRAME

Narrow profiles and high rigidity. The main solution for EI 60 and EI 90 and for large heights.

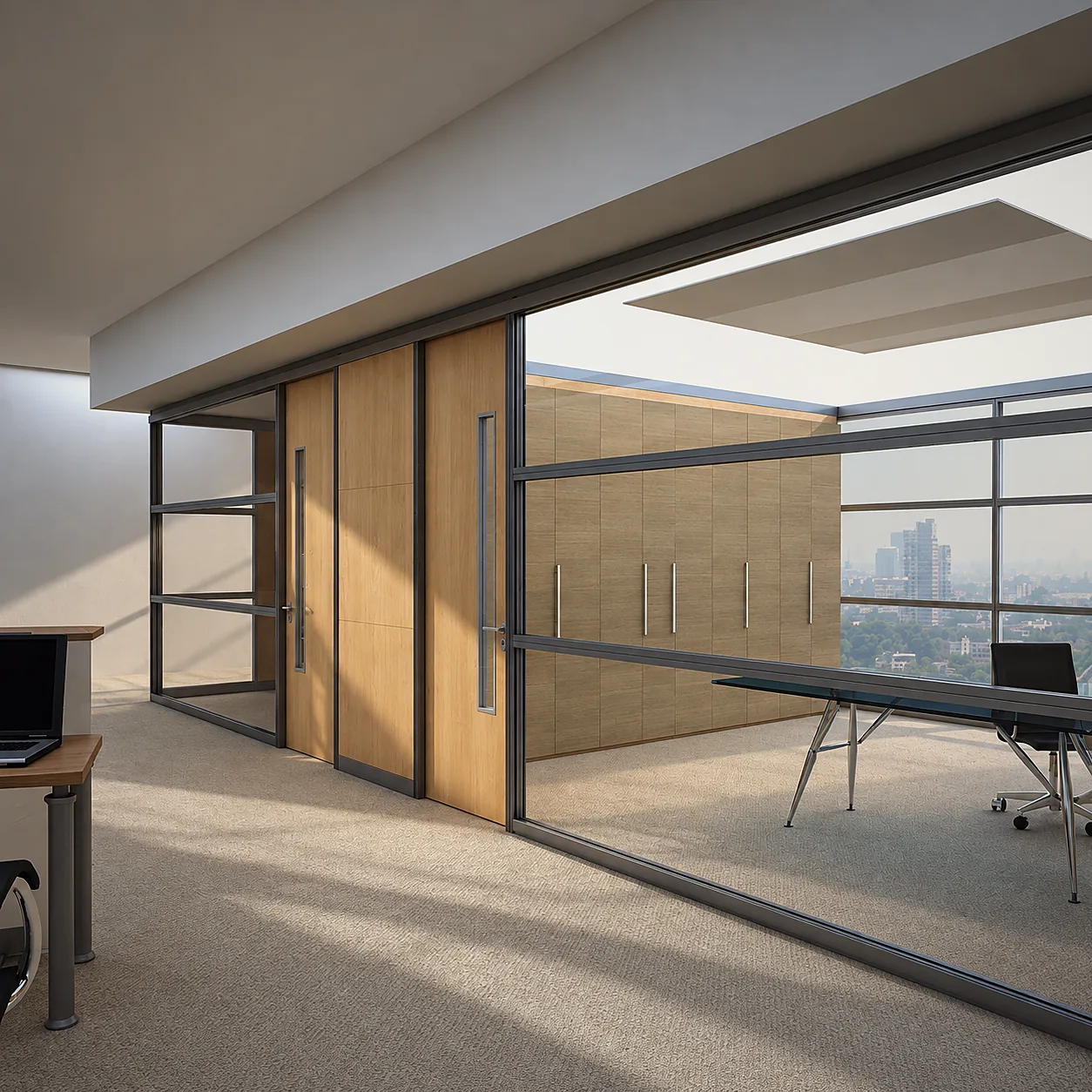

ALUMINIUM FRAME

Lightweight profiles with fire-protective inserts, compatible with façade and office systems. Most often used for EI 30 — EI 60.

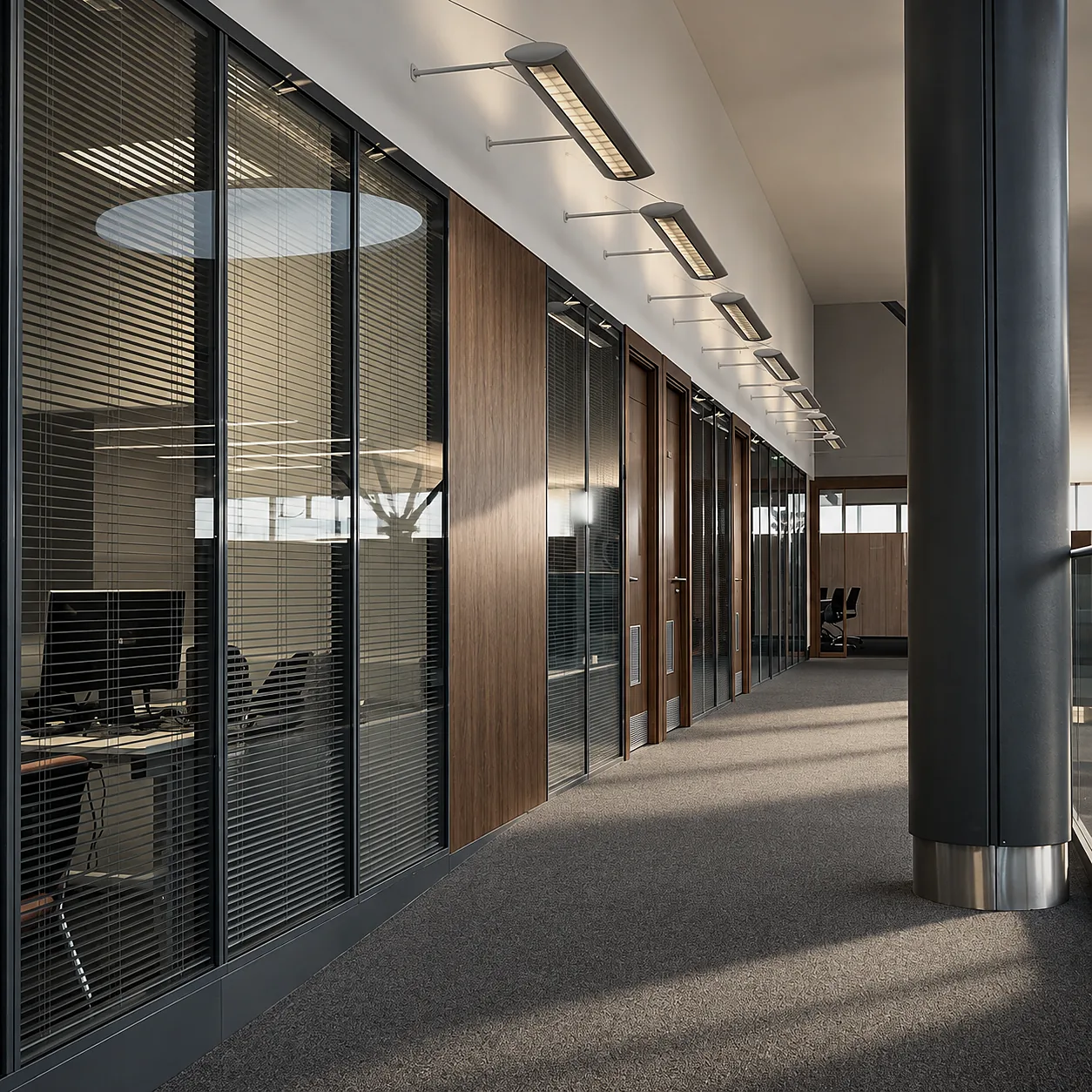

POWDER COATING

Any RAL colour, matt and textured finishes. The two sides of the partition can be painted in different colours.

STAINLESS STEEL

Brushed or polished profile cladding for entrance halls and high-traffic areas.

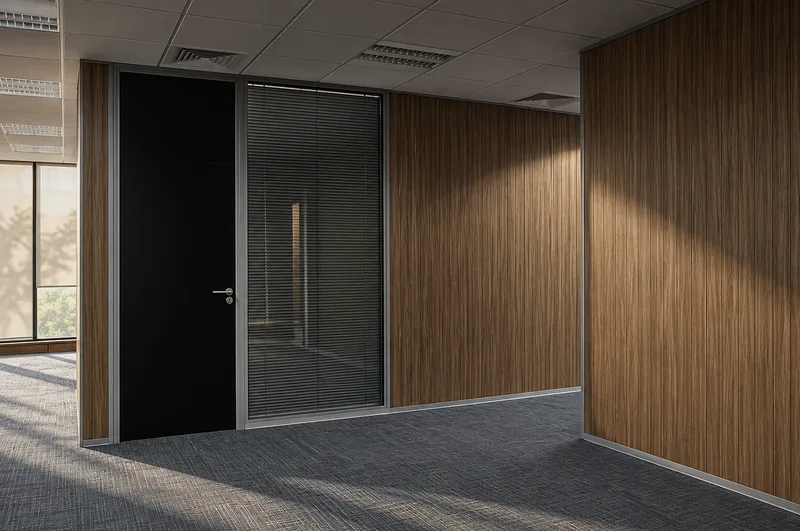

SOLID INSERTS

Opaque fire-resistant panels in partition modules — for areas where views need to be blocked or building services concealed.

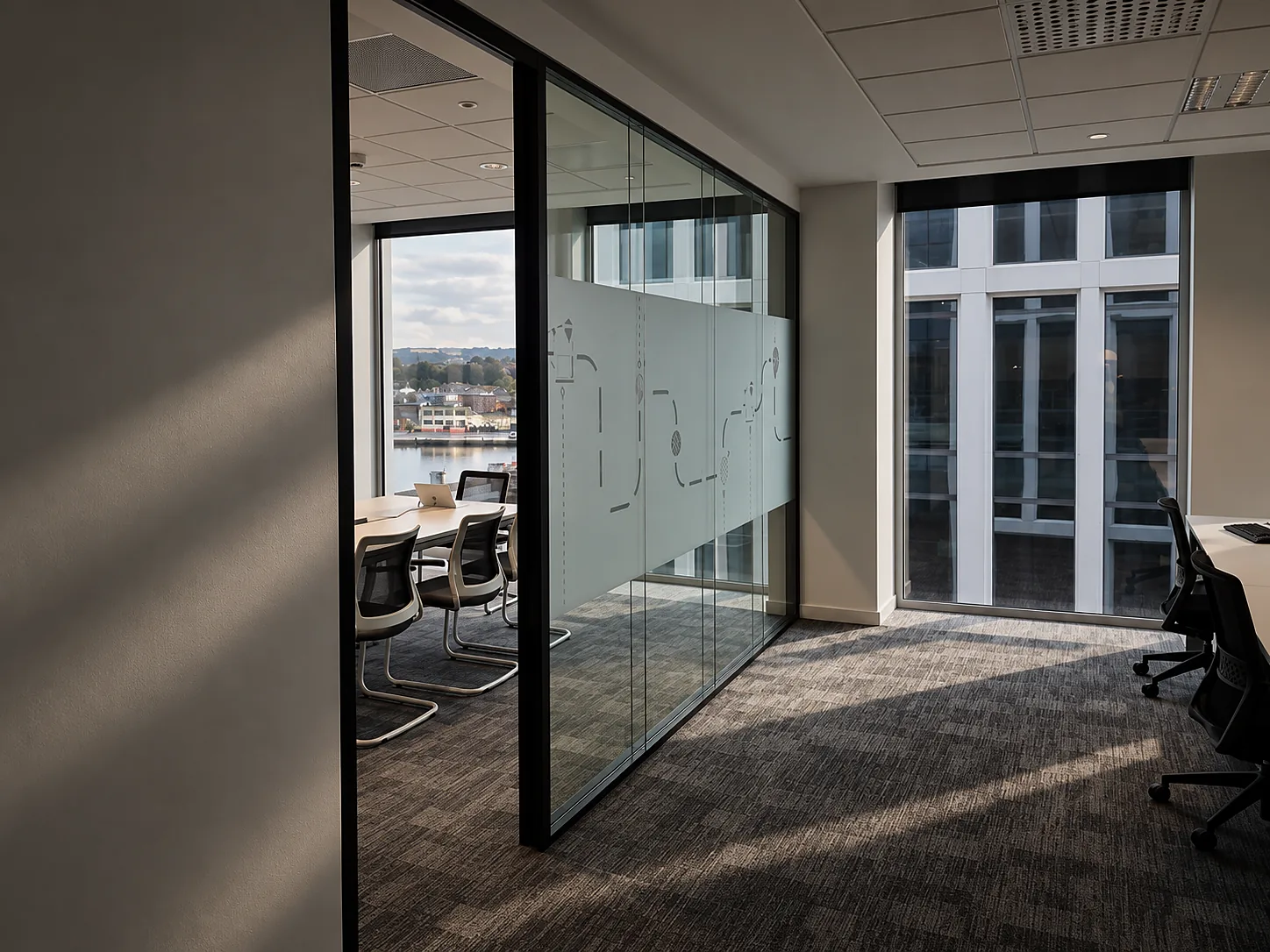

GLASS DECORATION

Frosting, films and safety manifestation, where permitted by the glass certificate.

04 · FIRE GLASS

FIRE-RESISTANT
GLASS

Class E — the glass keeps its integrity and blocks flames and hot gases but does not limit heat transfer. Usually toughened fire-resistant glass; used where E is sufficient under the regulations, for example in fire-rated windows.
Class EW — adds a limit on radiant heat to integrity: the heat flux density behind the glass does not exceed 3.5 kW/m². People can pass close to the construction during evacuation.
Class EI — the glass keeps its integrity and insulation: the unexposed side heats up by no more than 140 °C on average. Achieved with laminated glass with clear fire-protective interlayers.
Intumescent interlayers — under heat the interlayers foam into an opaque insulating layer. The number of glass panes and interlayers determines the fire rating and the thickness of the unit.
Gel infills — a clear gel between glass panes absorbs heat as its water evaporates. Suitable for high EI ratings at moderate thickness; requires the operating temperature range to be observed.
Fire-rated insulated glass units — fire-resistant glass within an IGU for external constructions and spaces with a temperature difference. They also provide thermal insulation, sound insulation and impact safety.

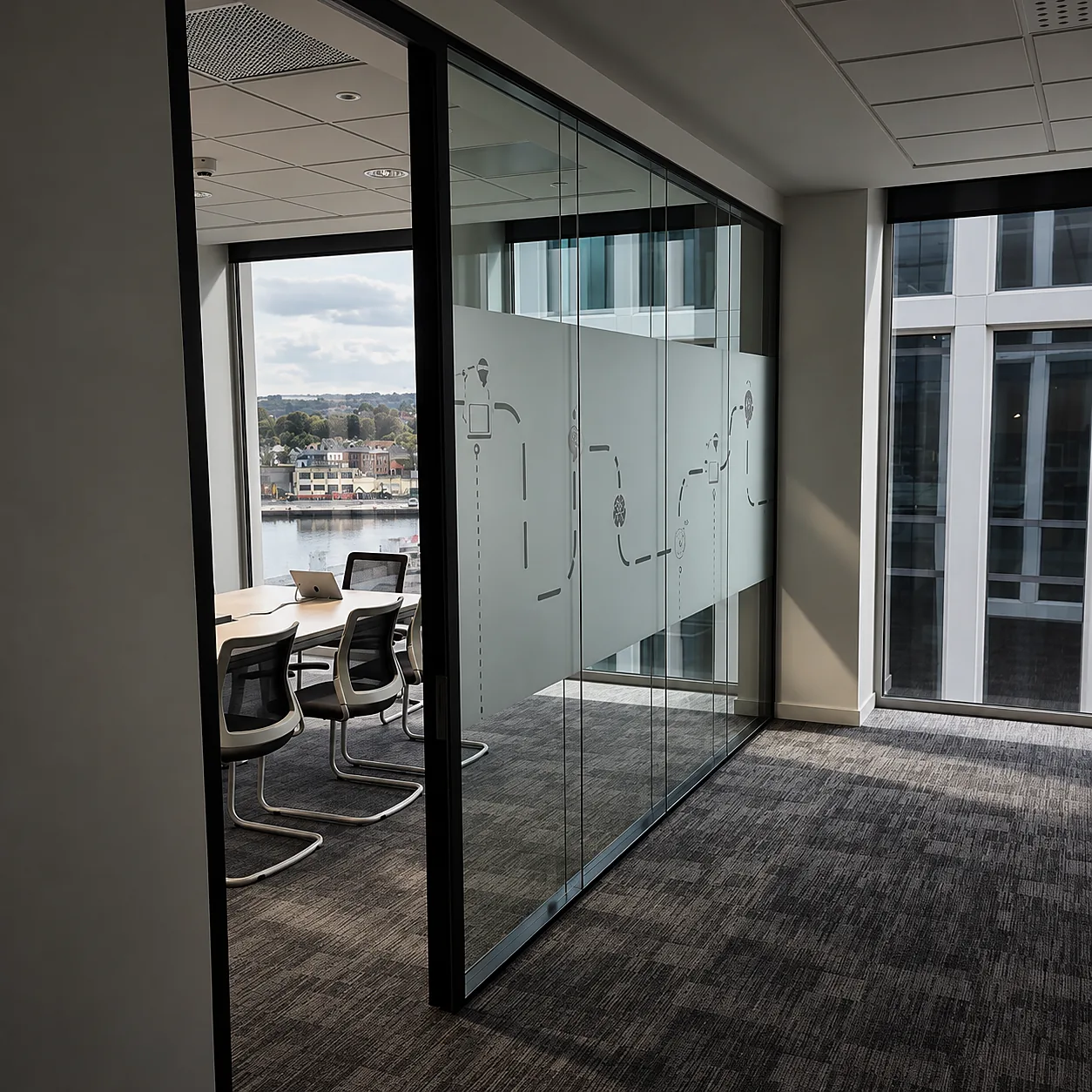

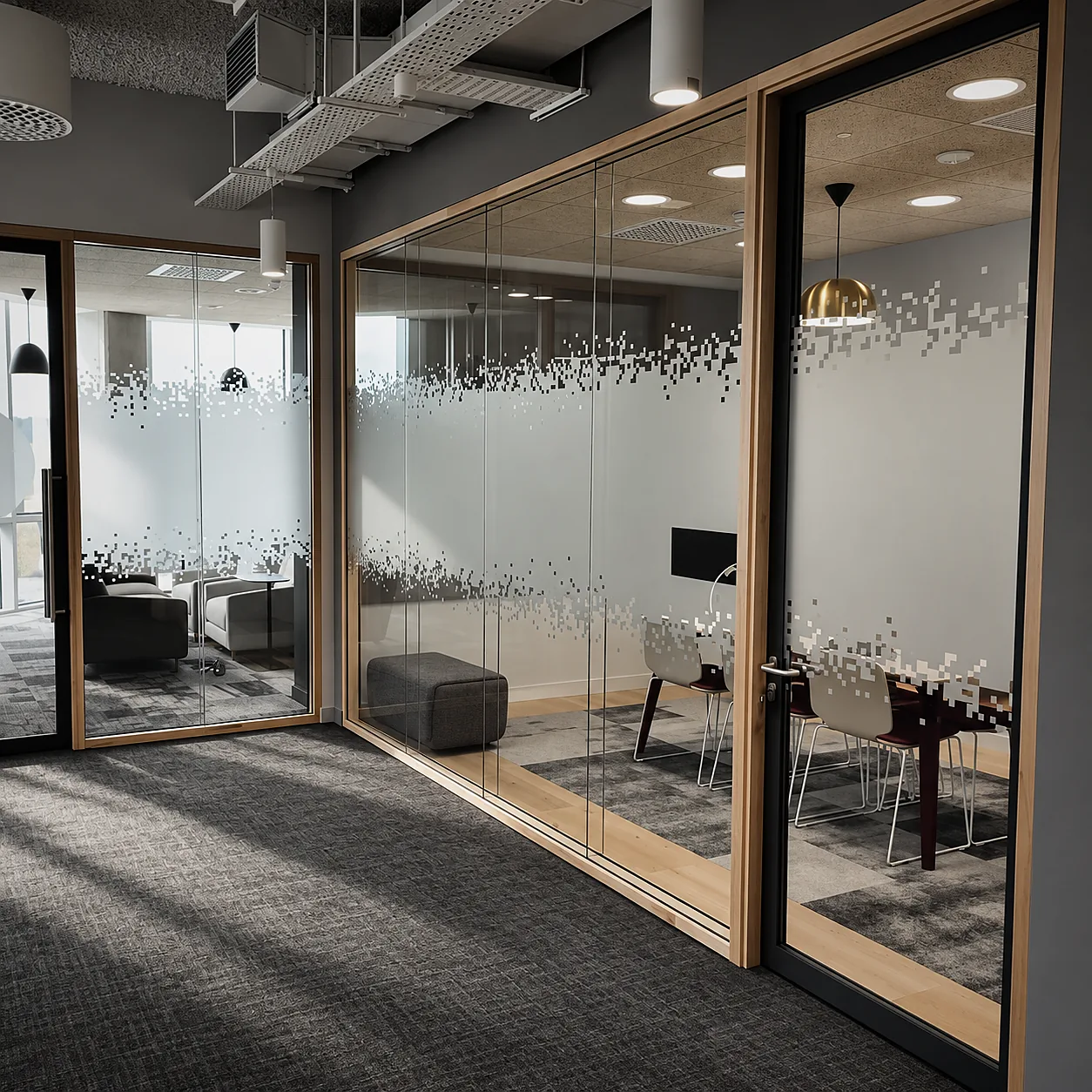

Glazed partition with frosted decoration

05 · PERFORMANCE

TECHNICAL
PERFORMANCE

E 30 — EI 90

FIRE RESISTANCE

Classes E 30, EI 30, EI 60, EI 90 and EIW 60/90 depending on the frame, glass and junction details.

UP TO 4 M AND MORE

PARTITION HEIGHT

Typical systems are designed for heights up to 4 m; greater heights follow tested solutions of the system manufacturer.

PER SYSTEM

GLASS SIZE

The maximum size of a single pane is defined by the test report and the glass type; confirmed at the design stage.

UP TO 2.5–3 M

DOOR HEIGHT

The height of the integrated door depends on the system, fire rating and chosen lock.

EIWS / EIS

SMOKE TIGHTNESS

Doors within partitions can be smoke-tight where supported by test evidence.

RAL

FRAME FINISH

RAL powder coating, stainless steel, different colours on each side.

Actual fire ratings and sizes of constructions are confirmed by the certificates and test reports of the chosen system for each project.

06 · HARDWARE

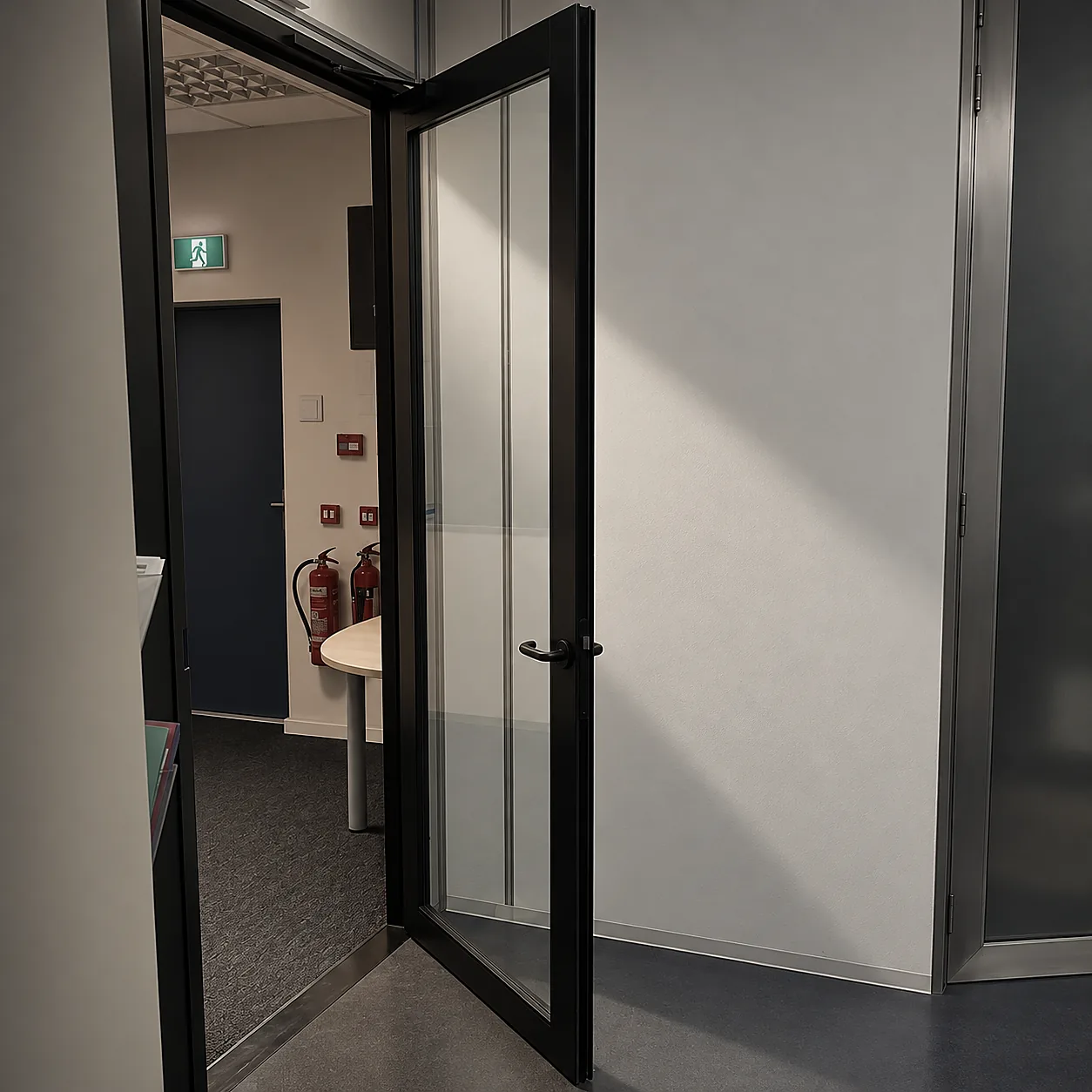

DOOR SET
HARDWARE

Hinges — surface-mounted or concealed, tested as part of the fire-rated door; number according to leaf weight.
Door closers — surface-mounted or concealed in the profile, with adjustable closing force and speed.
Closing sequence selector — ensures the correct closing order of the leaves of double doors.
Locks and panic hardware — fire-rated locks, panic bars and push-pad devices for escape routes.
Electromagnetic hold-opens — hold the door open in normal operation and release it on a fire alarm signal.
Access control — electromechanical locks and position sensors integrated with access control and building management systems.

07 · APPLICATIONS

WHICH
BUILDINGS

OFFICE BUILDINGS

Glazed EI 30 — EI 60 partitions between lift lobbies and office suites with no loss of daylight.

HOTELS

Partitions with integrated doors in corridors and lobbies, screens at reception and restaurant areas.

HOSPITALS

Double-leaf glazed doors in ward corridors and fire-rated screens at nurse stations.

SCHOOLS AND UNIVERSITIES

Partitions for break-out areas and stair lobbies with impact-safe fire-resistant glass.

SHOPPING CENTRES

Oversized full-height partitions in galleries and atriums separating fire compartments.

RESIDENTIAL COMPLEXES

Glazed doors and partitions for floor lift lobbies and entrances.

08 · STANDARDS AND DOCUMENTS

FOR DESIGNERS
AND CLIENTS

REGULATORY FRAMEWORK

Federal Law No. 123-FZTechnical regulations on fire safety requirements: fire barrier types and the required fire resistance of opening fillings.
GOST 30247.4-2022Fire resistance test method for glazed building envelope constructions and opening fillings; in force from 01.07.2024, replacing GOST R 53308-2009.
GOST 30247.0-94General requirements for fire resistance testing of building constructions.
GOST R 53303-2009Smoke leakage test method for fire doors and gates.
SP 2.13130.2020Ensuring the fire resistance of protected facilities: requirements for fire barriers and their fillings.

The editions of documents in force at the date of the contract apply.

WHAT WE PROVIDE

Typical junction details to slabs, walls and columns in DWG
BIM families for Revit — on request
Selection of system and glass for the required rating and opening size
Specification templates and questionnaires for partitions and screens
Certificates of conformity and system test reports
Product data sheets and as-built documentation after installation

REQUEST DOCUMENTATION

09 · FAQ

FREQUENTLY ASKED
QUESTIONS

What is the difference between E, EW and EI classes for glazing?

E means integrity only, EW adds a limit on radiant heat, and EI limits heating of the unexposed side. The required class is set by the fire barrier type under Federal Law No. 123-FZ and the fire safety design.

Can fire-resistant glass be fitted in a standard aluminium profile?

No. The fire rating is confirmed only for the construction as a whole: frame, glass, retainers, seals and fixings must match the tested specimen.

What class is required for a door with more than 25 % glazing?

For such doors the regulations also take the W failure criterion into account, so EIW of the relevant type is usually required, and EIWS where smoke-tightness is needed. The final class is set by the design.

How tall can a partition be?

Typical systems are tested to a height of about 4 m, some steel systems to more. Maximum module and glass sizes are taken from the test report of the chosen system and confirmed at the design stage.

Can broken fire-resistant glass be replaced?

Yes, provided the glass is of the same type and class as stated in the construction certificate. DPS selects the glass by its marking and data sheet and replaces it without dismantling the frame.

Can these constructions be used on the outside of a building?

Yes, for external use fire-rated insulated glass units and thermally broken systems are used. Gel glass is used externally only within a glass unit protected against overheating and freezing.

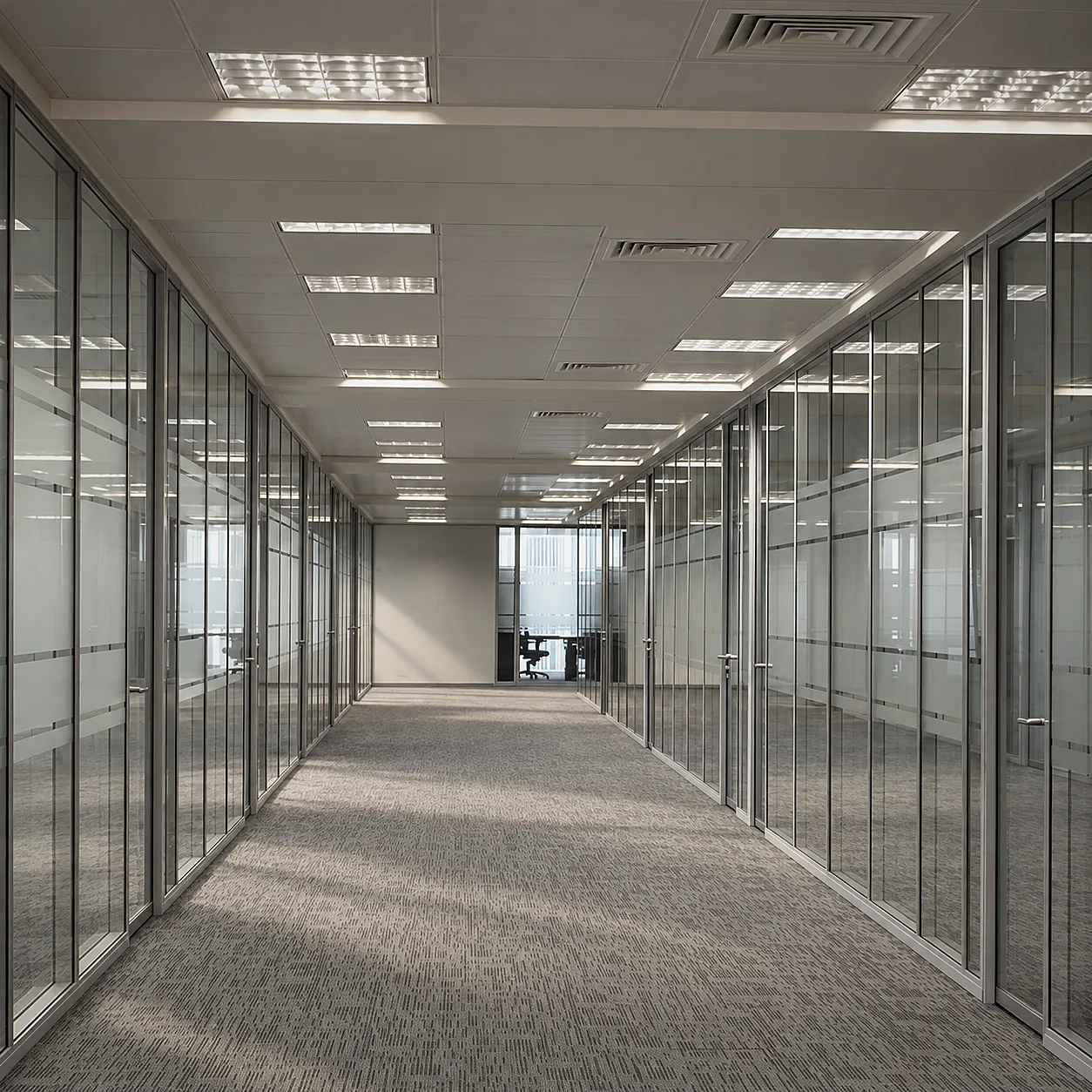

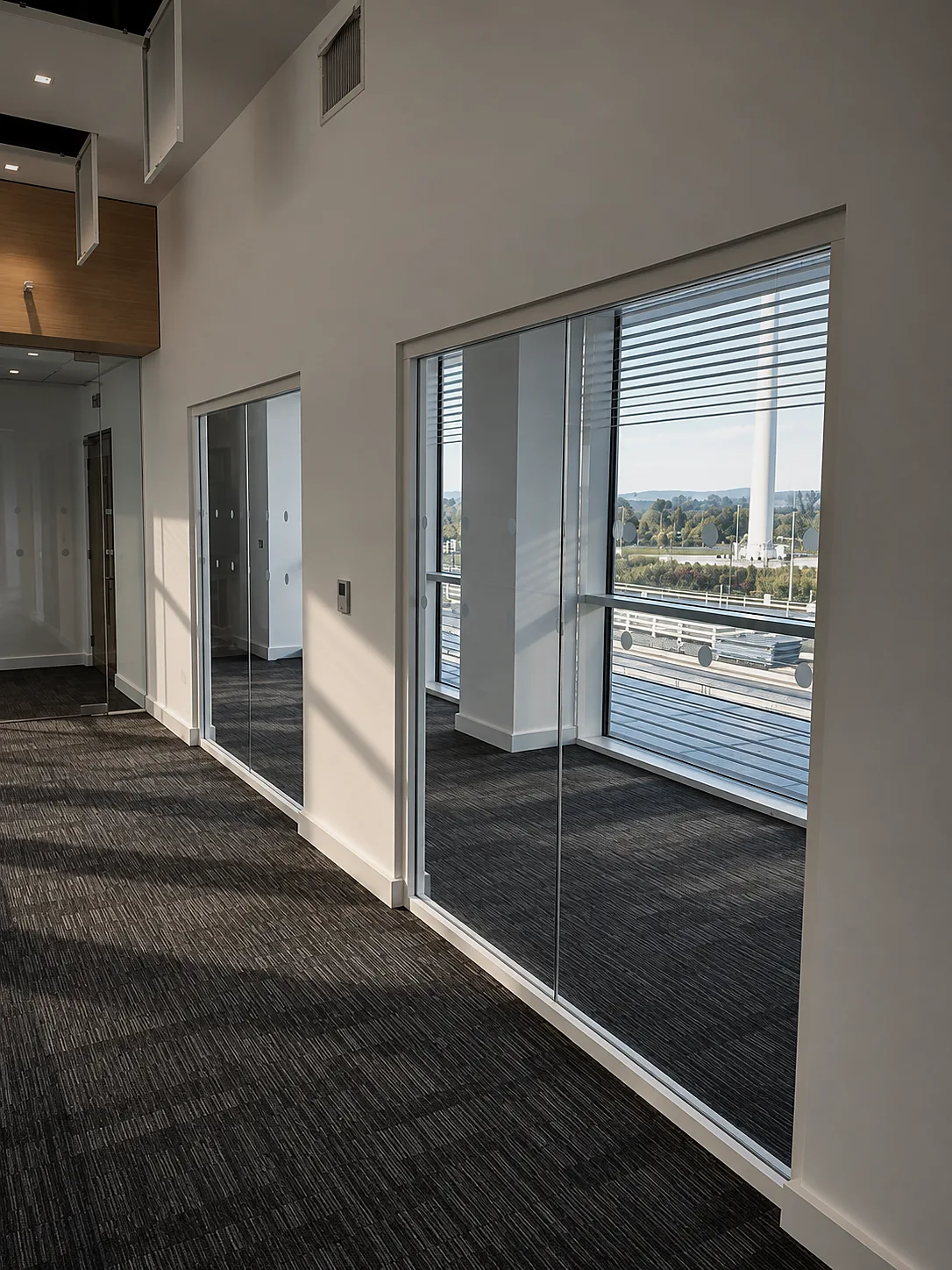

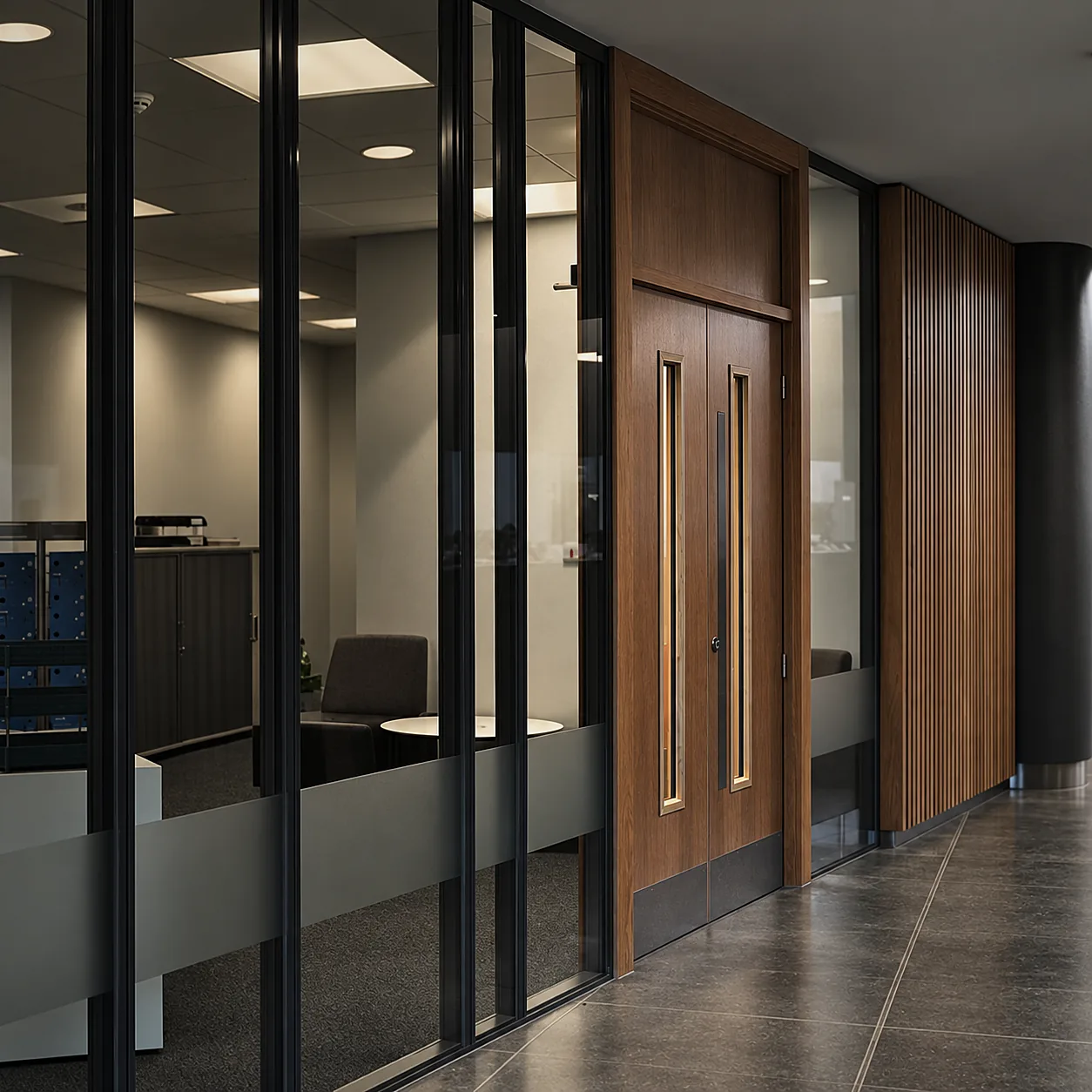

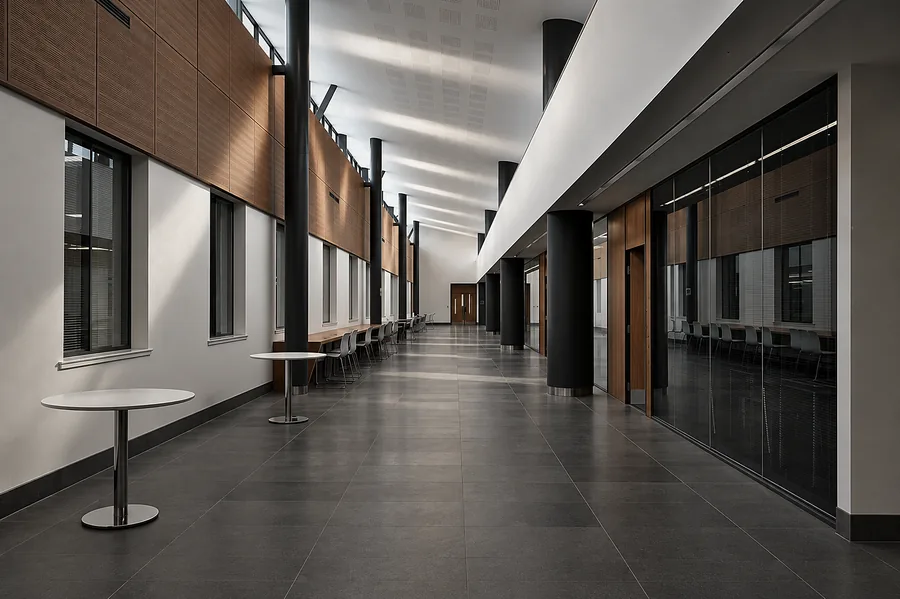

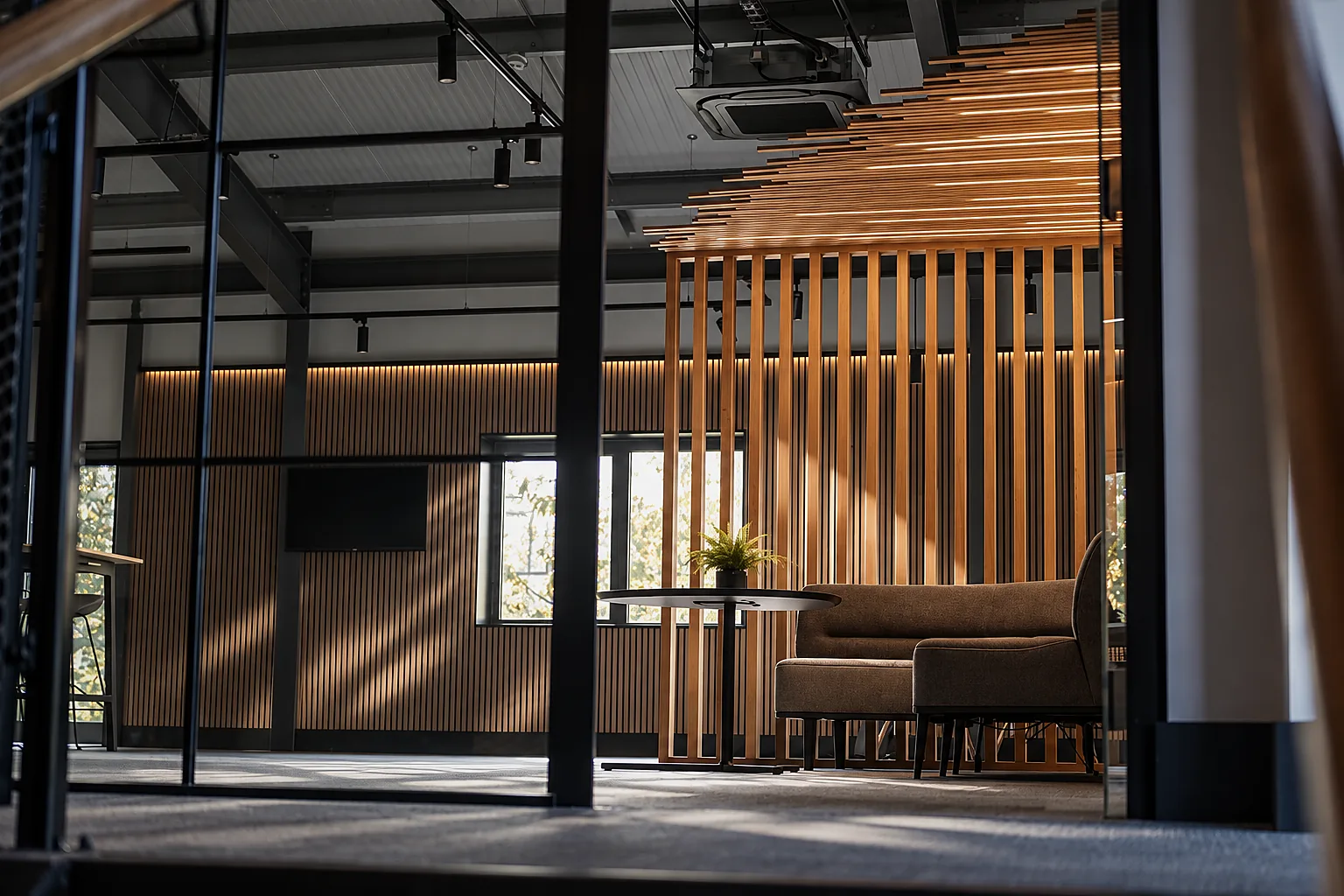

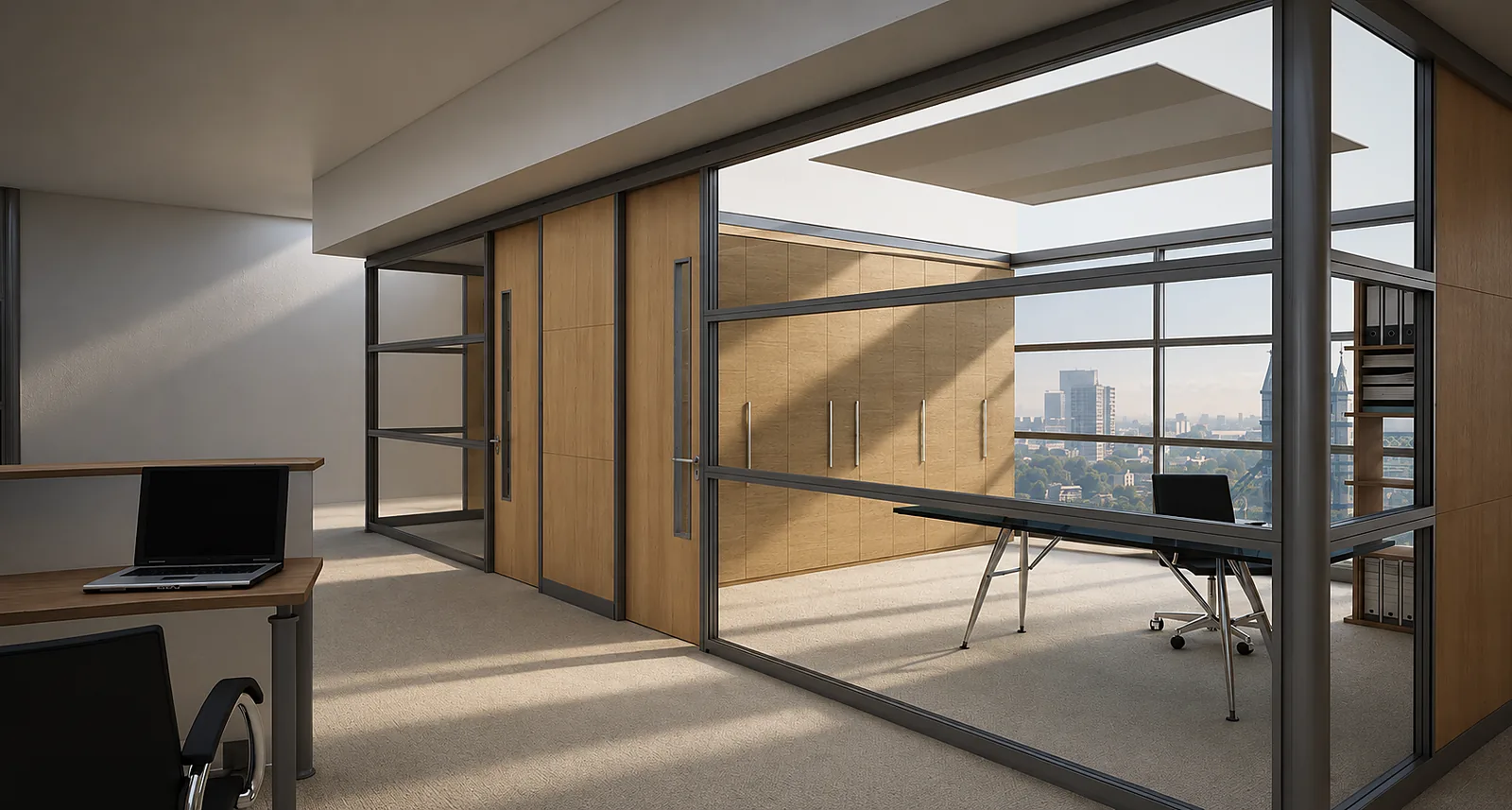

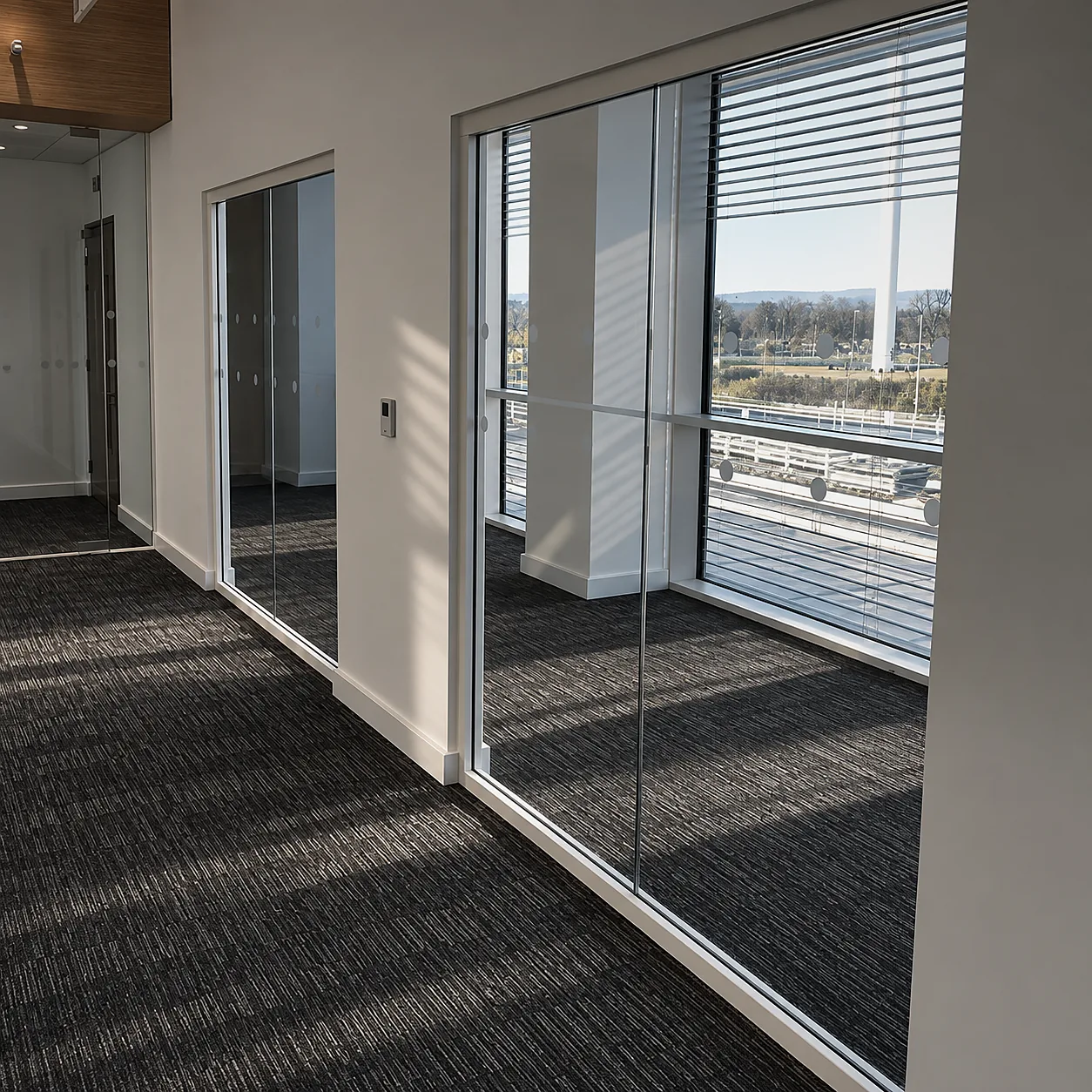

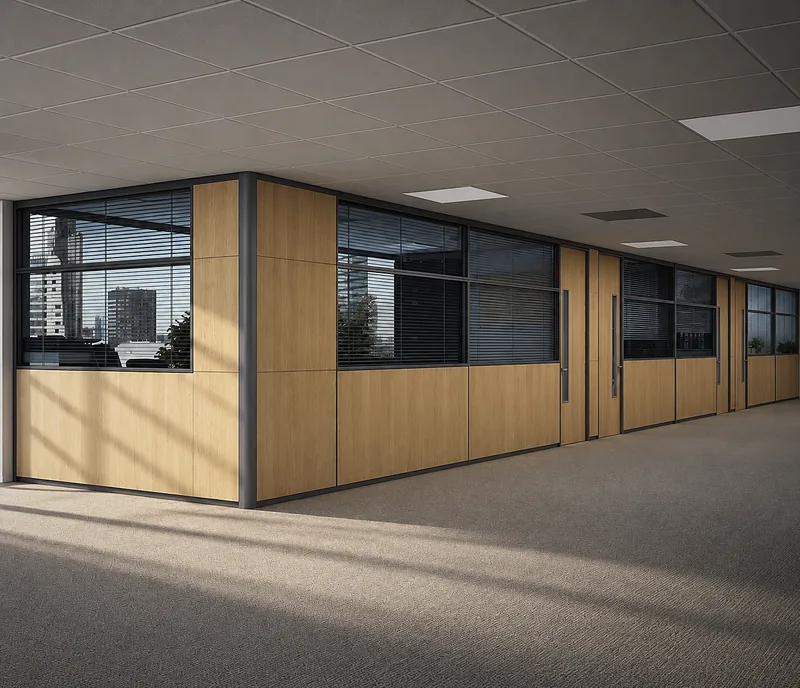

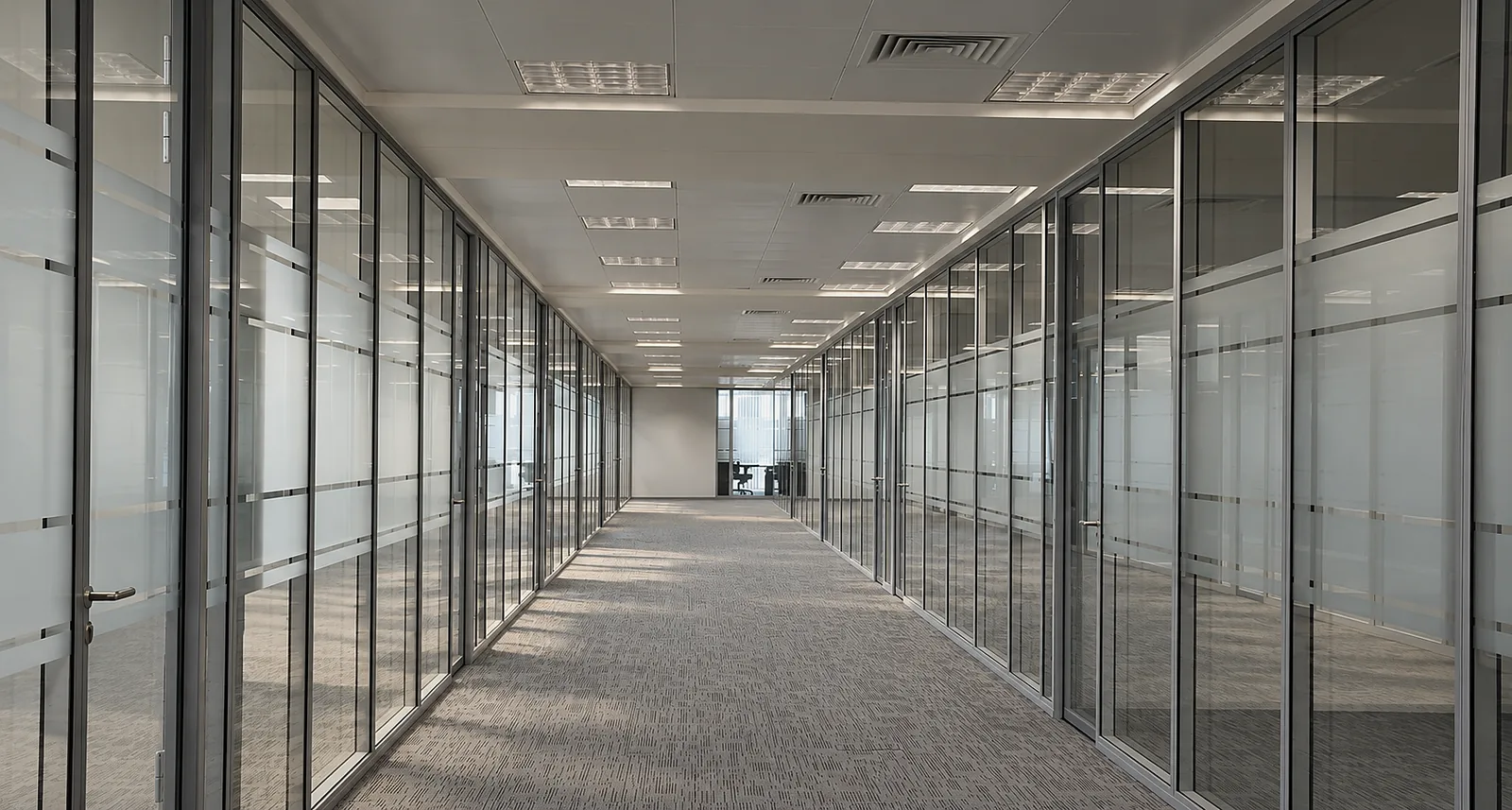

10 · GALLERY
