Product sketches and shop drawings (KMD)

Why certified designs

What we adapt for the client

• Dimensions — within the range permitted by the product certificate
• Configuration: single, leaf-and-a-half or double; left- or right-hand opening
• Glazing — sizes and positions within certified solutions
• Thresholds: standard, 14 mm, automatic drop seal, no threshold
• Hardware from the approved list: locks, hinges, closers, panic exit devices, door coordinators
• Finish: RAL colour, texture, coating; cover strips and architraves
• Preparation for access control, electric locks and position sensors

What a product drawing contains

1. Dimensioned elevation

   Frame dimensions, structural opening and clear opening dimensions, handle height.

2. Sections and details

   Sections through the frame and leaf, floor junction, threshold options.

3. Configuration

   Opening direction, number and type of leaves, mirrored versions.

4. Construction description

   Fire resistance class, infill, seals, hardware, fixing in the opening.

5. Coating and finish

   RAL colour, coating type, finish on each side.

6. “Approved” box

   The client signs the drawing — after that the product is released to production.

When shop drawings (KMD) are needed

If a product goes beyond certified solutions — oversized units, bespoke architecture, non-standard steelwork for partitions and gates — we develop a full set of KMD (steel structure detail drawings) to GOST 21.502-2016.

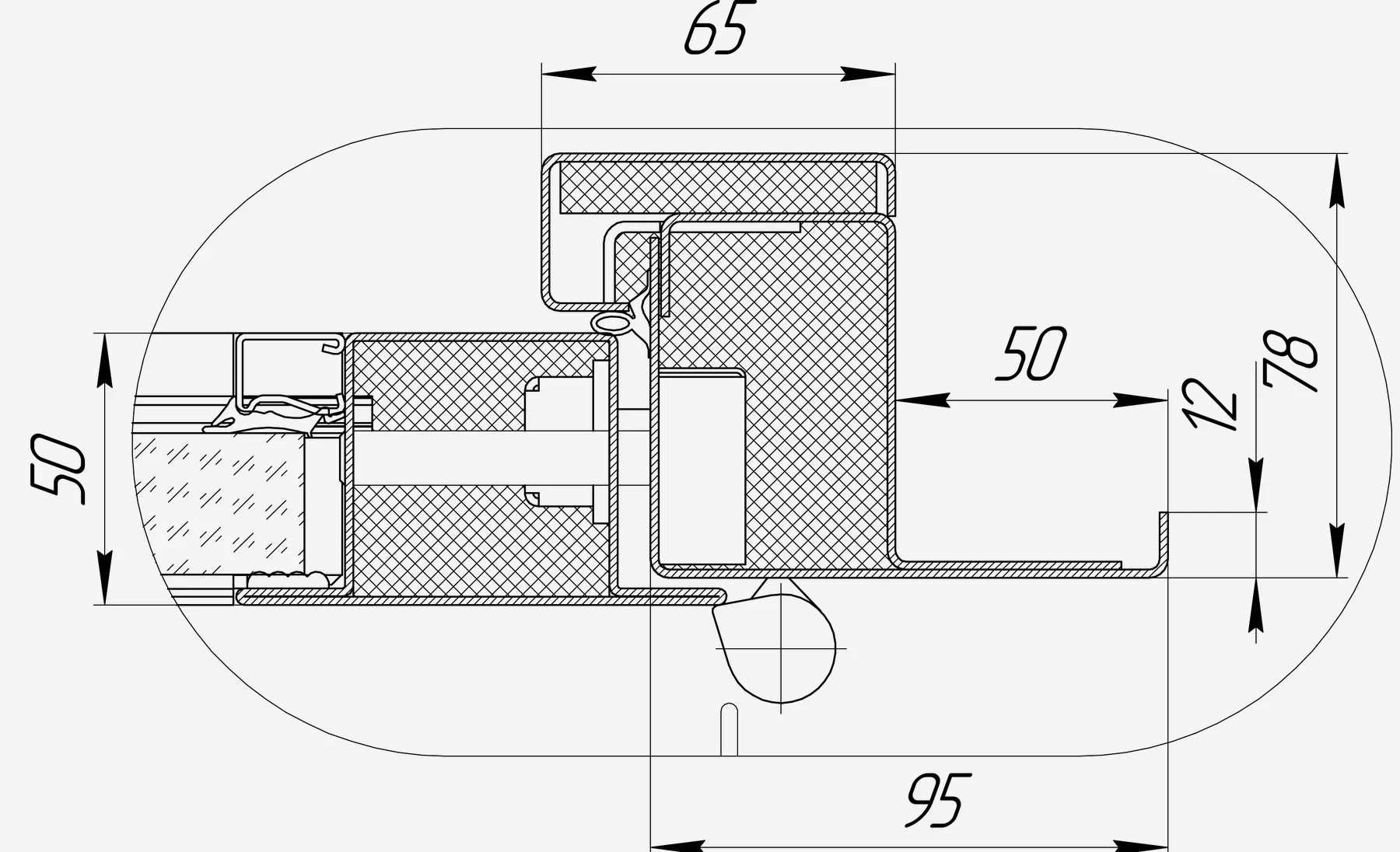

DETAIL A · LEAF-TO-FRAME JUNCTIONEIWS-60 GLAZED FIRE DOOR · SCALE 1:1

• 65 / 78Steel profile angle frame with mineral wool infill
• 50Frame cover strip; fixed in the opening with Ø10×92 anchor screws
• 50Steel profile leaf, 26 mm fire-rated glazing unit (6–14–6) on glazing beads
• —Rubber seal in the frame rebate, adjustable weld-on hinges

Contents of a KMD set

1. General data

   Drawing register, manufacturing notes, steel grades and materials, coatings, quality control requirements.

2. Elevations and opening diagrams

   Every product with its reference, overall dimensions, opening direction, glazing, transoms and side panels.

3. Sections and details

   Rebate, threshold, junctions with walls and partitions, element joints, glazing details.

4. Detailing

   Flat patterns and part drawings: dimensions, bending, holes, cut-outs for locks, hinges and closers.

5. Welded joints

   Weld types and sizes with symbols to GOST 2.312.

6. Bill of steel and materials

   Sections, sheet, infill, seals, intumescent materials — with weights and quantities.

7. Hardware and embedded items schedule

   Locks, hinges, closers, panic exit devices, door coordinators, embedded items for access control and electric locks.

8. Installation and fixing diagram

   Anchor type and spacing for the wall material, installation gaps, sealing of the installation joint.

Regulatory framework

What's included

• Selection of a certified design to meet fire resistance, acoustic and design requirements
• A drawing of each product type to the as-found opening dimensions
• Wall and floor junction details, fixing diagrams
• Glazing, transom and side panel layouts
• Hardware and access control embedded item layouts
• For non-standard products — a KMD shop drawing set
• Approval with the client and designer, incorporation of comments

Result

Approved product drawings (and, for non-standard products, a KMD set) in PDF and DWG. Once signed by the client, they are released to production and remain part of the project documentation.

What we need from the client

• An approved specification or door schedule
• Survey results — ours (3D scanning) or yours
• Fire safety and acoustic requirements for each opening
• Finish and colour requirements, hardware models if specified
• Wall and partition material at the openings

Timing and cost depend on the scope of work and are calculated for each project.
